Trotec TTK355 S Dehumidifier incl pump out

CONSTRUCTION DRYER DEHUMIDIFIER, TROTEC TTK 355

Easy to transport, hard to beat!. The ultimate condenser dryer for professional drying applications

The new value-for-money leader in the 70-litre class Reduce high levels of relative humidity in minimum time or easily keep large rooms dry – the TTK 355 S is in its element, this is what it was made for.

This becomes possible because of a clever combination of a strong 1.27 kW rotary compressor and a quality fan for airflow rates of up to 490 m³/h.

• High dehumidification performance even at low temperatures at 5 °C
• Maximum dust and dampness protection for all electrical components
• Very easy to maintain construction
• Washable pre-filters
• Portable and easily stored anywhere thanks to its rotary compressor
• Practical stacking groove for stable, space-saving storage and transport
• Stackable with equally dimensioned models
• Tried and tested German industrial design – protected prototype
• 34 litres at 26.7 degrees and 60% relative humidity
• 27.6 litres at 20 degrees and 60% relative humidity
• 12 litres at 10 degrees and 60% relative humidity
• Includes pump out with a 10m clear hose

* Please note the unit only operates after three to five minutes after being swtiched on to protect the components from damage due to travel to site

Thanks to the high air circulation, the tuned heat exchange system is always able to feed extreme humidity from the ambient air for quick drying. Up to 70 litres of humidity can be removed from the room air per day with just one TTK 355 S in this manner.

At the same time, compared with other defrost systems, the high-quality hot gas automatic defrost of the TTK 355 S guarantees a much more efficient dehumidification performance without defrost pauses on a time interval during which no dehumidification occurs.

Common location changes and use in rough construction site conditions are no problem for this condenser dryer: Thanks to the ergonomic construction and carriage design with a bar handle and large wheels, the TTK 355 S can easily be transported over uneven terrain or up and down stairs – the rotary compressor makes it possible to transport it anywhere. And the non-marking rubber wheels leave no marks on your floorboards or other sensitive undergrounds.

A special enclosure protects the electronic components of the dehumidifier from hazardous dust or moisture, which can interfere with the functionality and durability of the electronics.

The enclosure is in no way inferior to the impressive inner values: All components of the TTK 355 S are reliably protected and attractively combined in the tried and tested German industrial design – protected prototype.

Even in storage, the TTK 355 S makes a good impression – while taking up surprisingly little space. Due to its two practical stacking grooves on top, equally sized TTK‑S devices can be safely stacked to save space during transport and storage.

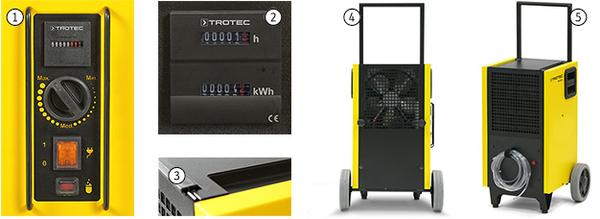

Clearly arranged control panel – protected by protective bars.

The serial operating hours counter of the TTK 355 S commercial dehumidifier is optionally available as a dual counter for operating and kilowatt-hours.

A special enclosure reliably protects the TTK 355 S dehumidifier electronics from dangerous inclusions.

Two stacking grooves make it possible to stably stack equally sized TTK‑S commercial dehumidifiers to save space.

A powerful condensate pump with a pump performance of up to 50 m distance and a maximum pump height of 4 m is also available for permanent drying with the TTK 355 S.

This can be used to permanently drain condensation from whole stories of buildings.

COMMERCIAL DEHUMIDIFIERS OF THE TTK-S SERIES The new standard class – top of the class.

Robust metallic housing, strong rotary compressors, low-maintenance construction, high airflow rate and wide range of usable temperatures: Whether for use in a workshop, in construction, in storage or in a laboratory – the portable, commercial dehumidifiers of the TTK S series are the perfect drying aggregates for changing applications, even in rough conditions.

With the pioneering TTK S commercial dehumidifiers, you can now benefit from a variety of detailed solutions which save you time, enhance your performance and secure value retention – attractively combined in the tried and tested German industrial design – protected prototype.

Also protected – from dust and dampness, that is – are all electrical components of the devices. A special enclosure improves the protection of the electronic equipment from anything dangerous which may enter and impair the functionality and durability. This enclosure makes the commercial dehumidifier predestined for use in harsh conditions.

Due to its extremely low-maintenance construction, the new TTK S generation is easier to clean than ever before and due to its low power to weight ratio and its clever mobility features, it is easy to transport.

Nevertheless, in terms of dehumidification capacity, these dryers are no lightweights: The entire heat exchange system made of high-quality components was designed to work in harmony and guarantees the maximum drying efficiency of the devices in all temperature ranges – for example, even under 15 °C in unheated rooms.

Furthermore, compared with other defrost systems, the high-quality hot gas automatic defrost guarantees a much more efficient dehumidification performance without defrost pauses on a time interval during which no defrosting occurs!

Even in the storage, these commercial dehumidifiers make a good impression – while taking up surprisingly little space. Because they are equipped with two practical stacking grooves on their tops, equally sized TTK S devices can be safely stacked to save space during transport and storage.

Benefits in practice TTK 355 S:

• Has non-colouring solid rubber tires
• Allows for easy transport with the trolley design
• Maximum dust and moisture protection for all electrical components
• Practice optimized German industrial design
• Multi stackability - even better handling property
• Belongs to the maintenance-friendly TTK-S series of all time
• Operating hours counter

How to Use

TTK 175, 355 have a 3 minute compressor start to protect the motor.

Orange flashing light once per second fully operational.

Orange flashing light five times per second the temperature is above or below the operation limits or the humidity level has been reached.

Permantly illuminated or not illuminated orange light contact customer service.

• Class 1 4 air exchange needed
• Class 2 4 air exchange needed
• Class 3 6 air exchange needed
• Class 4 8 air exchange needed

A short snap shot of the classes of water damage

Class 1 (least amount of water, absorption and evaporation): Water losses that affect only part of a room or area, or larger areas containing materials that have absorbed minimal moisture. Little or no wet carpet and/or cushion is present

Class 2 (large amount of water, absorption and evaporation): Water losses that affect at least an entire room of carpet and cushion (pad). Water has wicked up walls less than 60cm. There is moisture remaining in structural materials; e.g., plywood, particle board, structural wood, VCT, concrete and substructure soil

Class 3 (greatest amount of water, absorption and evaporation): Water may have come from overhead. Ceilings, walls, insulation, carpet, cushion and subfloor in virtually the entire area are saturated

Class 4 (specialty drying situations): These consist of wet materials with very low permeance/porosity (e.g., hardwood, plaster, brick, concrete, light weight concrete and stone). Typically, there are deep pockets of saturation, which require very low specific humidity. These types of losses may require longer drying times and special methods

Air Exchange is example if the room is 100 cubic meters LxWxH and the dehumidifier is 400 cubic meters per hour that means that 4 times an hour the complete air from the room with air movement assistance will exchange the air through the dehumidifier.
