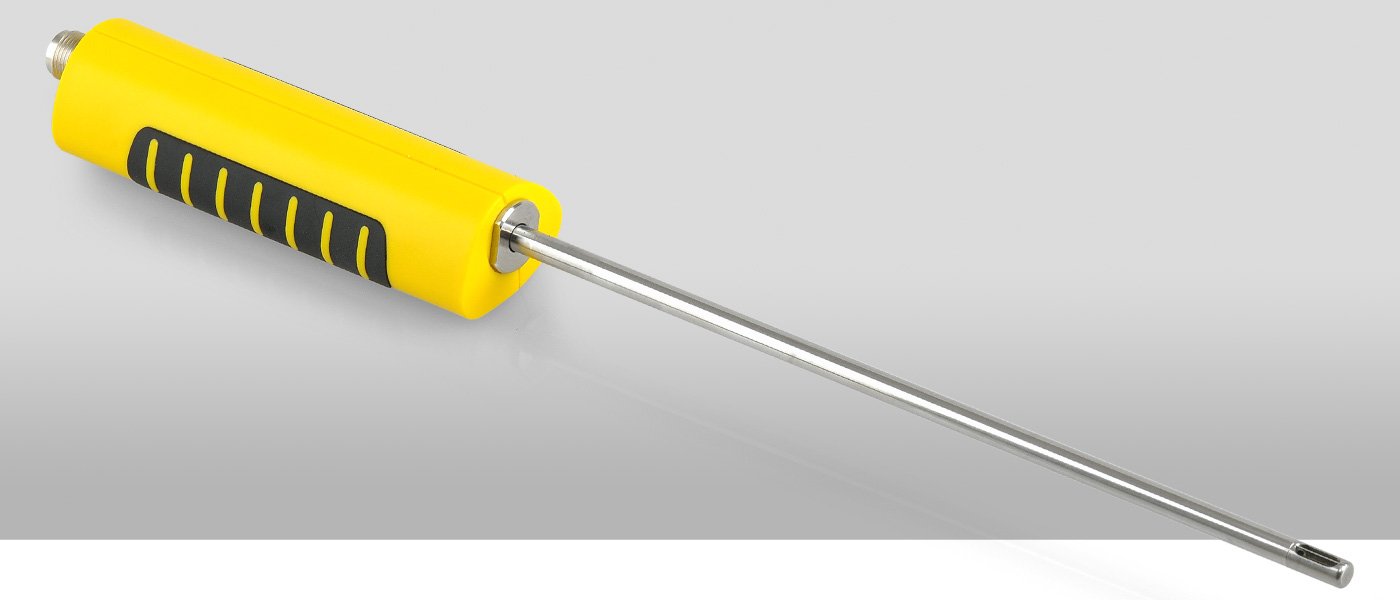

Trotec TS410 SDI Anemometer Sensor

Anemometer sensor for the T3000 multifunctional meter

This sensor is not only suitable for checking the distribution of flow and temperature in ventilation and air conditioning systems but also for finding weak points when certifying the air tightness of buildings (blower door).

Reconstruction companies also use it to check the capacity of their drying installations in insulation layer drying after water damage as the TS 410 SDI allows them to quickly and precisely determine whether there is sufficient flow of air at the relief openings to dry out the insulation layer.

The technical data at a glance:

Sensor display 1: air velocity

• Measuring range: 0.00 to 20.00 m/s
• Resolution: 0.01 m/s
• Accuracy: (± 0.2 m/s + 2 % of the measured value)
• Units: m/s, m³/s, m³/min, m³/h, l/min

Sensor display 2: air temperature

• Measuring range: 0 °C to +50 °C
• Resolution: 0.1 °C
• Accuracy: ± 0.7 °C (at v > 0.5 m/s)
• Units (Unit 2) for display sensor: °C, °F

Sensor element

• Material: stainless steel
• Length / Ø: 210 mm / 6 mm
• Sensor handle environmental conditions: 0 °C to +50 °C
  (electric measurement system in the grip)
